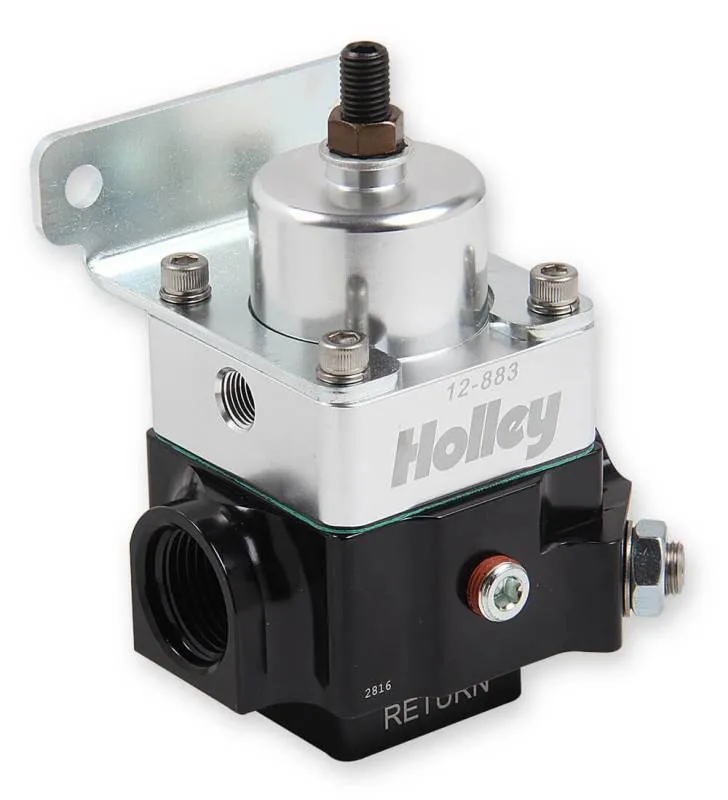

Name: Holley In-Line Fuel Pressure Regulator - 4-9 psi - 10 AN Female O-Ring Inlet - 10 AN Female O-Ring Outlet - 10 AN Female O-Ring Return - 2 Port - Double Adjustable - E85 / Gas / Methanol
SKU: 515667

Holley's new double adjustable fuel pressure regulators are designed for belt or cable driven pumps where fuel flow changes with engine rpm. These regulators are compatible with E85 and alcohol applications. Made from billet aluminum, these regulators are offered in both 2-Port and 4-Port models to complete your fuel system requirements. The idle adjustment design is strategically placed so that none of the ports are blocked like other designs. These regulators retain the true 2 and 4 port flow. ¢ Alcohol and E85 compatible. ¢ 2 Port models available with 8AN and 10AN port size

Features: Individual adjustment settings, one for idle and wide open throttle.

Fuel pressure adjustability at idle can help prevent flooding at low rpms

Wide open throttle settings help to prevent fuel starvation at the top end of the rpm range

Alcohol and E85 compatible.

SPECS: Application: Universal

Brand: Holley

Color: Black Anodized

Emission Code: 3

Fuel System: Carbureted

Fuel Type: E85/Alcohol

Inlet Size: 10 AN

Material: Aluminum

Outlet Size: 10 AN

Pressure Range: 4-9 PSI

Product Type: Regulator

Style: Double Adjustable

Part Number: 12-883

Holley is quickly becoming The New Standard In EFI! Holley's HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley's EFI throttle body powers every NASCAR Cup Series team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All Star race. But that's not all. The world's best street machine builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It's the easiest, most refined, feature-rich system that money can buy. But, don't take our word for it, see what the best are saying about Holley EFI!

Regulator is compatible with Diesel #1 and Diesel #2.

Fuel pressure adjustability at idle can help prevent flooding at low rpms

Wide open throttle settings help to prevent fuel starvation at the top end of the rpm range

Alcohol and E85 compatible.

Product Description:

Fuel Pressure Regulator

4-9 psi

In-Line

10 AN Female O-Ring Inlet

10 AN Female O-Ring Outlet

10 AN Female O-Ring Return

2 Port

Double Adjustable

Aluminum

Black Anodized

E85 / Gas / Methanol

Sold Individually
